Solar Atta Chakki
Run your flour mill on FREE solar power. Save thousands on diesel every month!
Complete Solar Chakki System

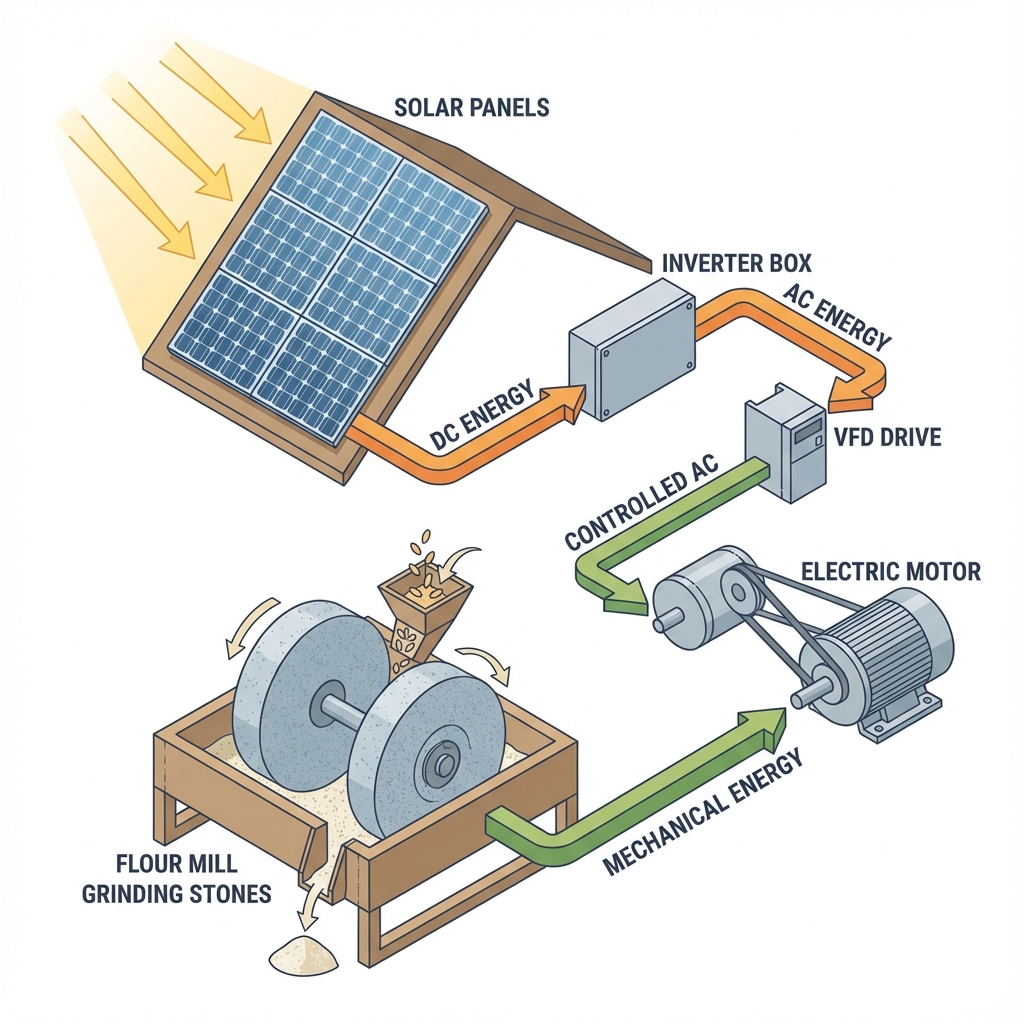

Sunlight → Solar Panels → VFD Drive → Motor → Flour Mill

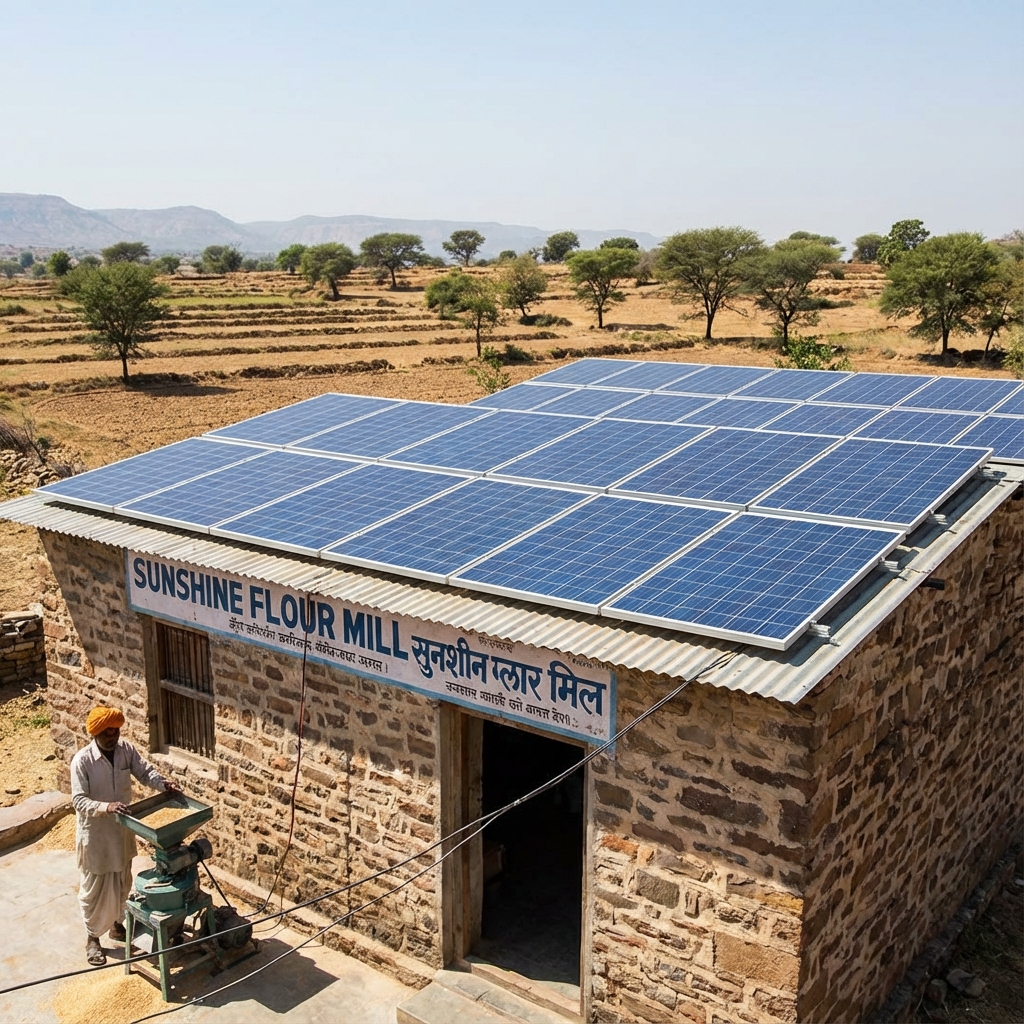

Solar Panel Array
Clean energy from the sun

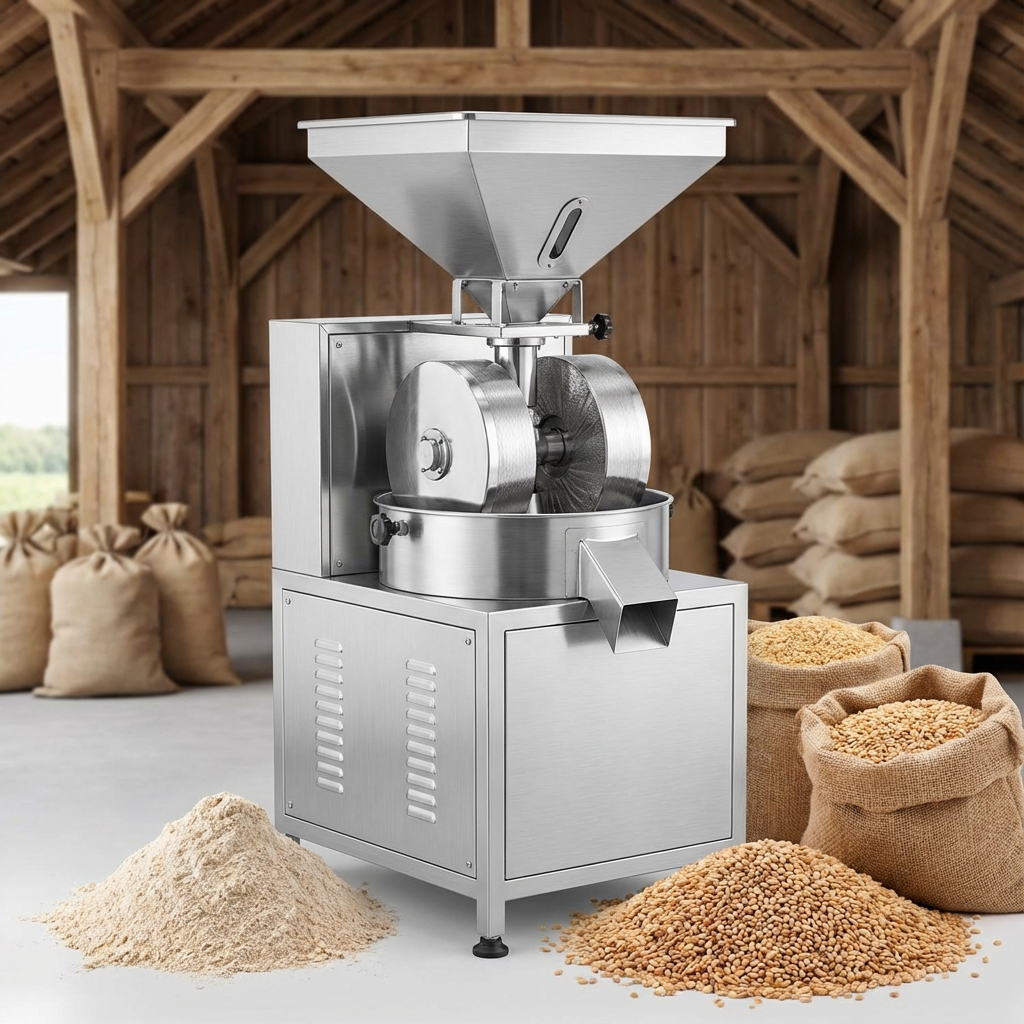

Atta Chakki Mill
High-capacity flour grinding
Solar Atta Chakki क्या है?
सोलर आटा चक्की एक क्रांतिकारी flour mill system है जो सूर्य की रोशनी से उत्पन्न electricity पर चलती है। यह traditional diesel या electric चक्की का एक eco-friendly और cost-effective विकल्प है जो किसानों और flour mill व्यवसायियों के लिए विशेष रूप से डिज़ाइन किया गया है।
मुख्य विशेषताएं
- ✓ 100% सौर ऊर्जा से संचालित
- ✓ Diesel की कोई आवश्यकता नहीं
- ✓ 25+ साल की लंबी उम्र
- ✓ कम से कम maintenance
- ✓ सभी प्रकार के अनाज पीस सकते हैं
- ✓ Government subsidies available
यह कैसे काम करता है?
- सूर्य की रोशनी solar panels पर पड़ती है
- Solar panels DC electricity उत्पन्न करते हैं
- VFD Drive DC को AC में convert करता है
- Motor AC electricity से चलती है
- Chakki अनाज को आटे में पीसती है
- Fresh flour बिना किसी fuel cost के!
किसके लिए सबसे उपयुक्त?
आप कितना कमा सकते हैं?
दैनिक कमाई
प्रति दिन (10-15 quintal production)
मासिक कमाई
प्रति माह (25 working days)
वार्षिक कमाई
प्रति वर्ष (300 working days)
Note: वास्तविक earnings आपके area की demand, grinding charges (₹2-3 per kg), और daily production पर निर्भर करती हैं। ऊपर दिए गए figures एक standard 10 HP system के लिए हैं।
Traditional Chakki Problems
- High Diesel Costs: ₹5,000-15,000 monthly fuel expense
- Price Volatility: Diesel rates keep increasing
- Pollution: Smoke and emissions harm health
- Maintenance: Frequent engine repairs needed
Solar Chakki Solution
- Zero Fuel Cost: Run entirely on free solar energy
- Fixed Costs: No more dependency on diesel prices
- Eco-Friendly: Zero emissions, pure & clean
- Low Maintenance: Solar panels need minimal care
Your Savings with Solar Chakki
Monthly Savings Example
With Solar Chakki
6 Essential Components
A solar atta chakki system comprises six key components that work together to deliver efficient, diesel-free flour grinding.
1. Flour Mill
The primary component with a minimum diameter of 20 inches capable of producing 10-15 quintals of flour daily, generating profits of ₹2000-2500 per day.
2. Motor
A 10 HP motor to operate 20-24 inch flour mills. High-quality motors with minimal jerk load perform excellently on solar panels, ensuring smooth operation.
3. Solar VFD Drive
Converts DC energy from solar panels into AC energy for the motor. Always use a drive 1.5x larger than motor HP (e.g., 15HP drive for 10HP motor) to handle peak loads.
4. Solar Panels
The most expensive component. We recommend Mono PERC technology for maximum year-round efficiency. Install 2-3 kW extra capacity than motor HP for consistent performance in all sunlight conditions.
5. Mounting Structure
Critical framework for optimal power generation. Panels must face south at the correct angle to maximize efficiency. Proper installation significantly impacts overall output.
6. Wiring & Cables
High-quality DC and AC cables connect all components. Proper gauge wiring ensures minimal power loss and safe, efficient electricity transmission throughout the system.
Pro Tip: Panel Selection
While Bi-facial panels (generate from both sides) offer long-term benefits, we recommend Mono-facial Mono PERC panels for most installations due to lower upfront costs, simple installation, and excellent year-round performance. They provide the best value for agricultural chakki applications.
Complete System Range
सभी capacity के solar chakki systems उपलब्ध हैं
Small Scale
- Solar Capacity:3 kW
- Panels Required:6-7 panels
- Daily Generation:12-15 units
- Investment:₹1.8-2.2 L
- Payback Period:14-18 months
Medium Scale
- Solar Capacity:7 kW
- Panels Required:14-16 panels
- Daily Generation:28-35 units
- Investment:₹3.25-3.3 L
- Payback Period:12-16 months
Commercial Use
- Solar Capacity:10 kW
- Panels Required:16-18 panels
- Daily Generation:40-50 units
- Investment:₹3.25-4.6 L
- Payback Period:10-14 months
High Capacity
- Solar Capacity:12 kW
- Panels Required:20-22 panels
- Daily Generation:48-60 units
- Investment:₹3.7-5.9 L
- Payback Period:10-12 months
Heavy Duty
- Solar Capacity:18 kW
- Panels Required:30-33 panels
- Daily Generation:72-90 units
- Investment:₹7.5-8.5 L
- Payback Period:9-12 months
Industrial
- Solar Capacity:25 kW
- Panels Required:42-45 panels
- Daily Generation:100-125 units
- Investment:₹10.4-10.6 L
- Payback Period:8-11 months
Mega Capacity
- Solar Capacity:30 kW
- Panels Required:50-55 panels
- Daily Generation:120-150 units
- Investment:₹12-14 L
- Payback Period:7-10 months
Custom Requirements?
Need a different capacity or special configuration? We can customize solar chakki systems according to your specific needs - from 3HP to 30HP and beyond. Contact us for a personalized quote!
Switch to Solar Chakki Today!
Say goodbye to diesel costs forever. Start saving from day one.
Get Solar Chakki Quote
